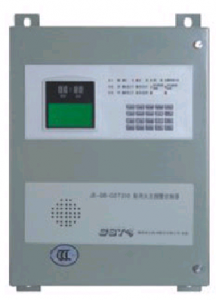

Junctional Description: JB-QB-GST200 products, including 16 points, 32 points, 64 points, 96 points, 128 points, 192 points, 242 points of fire alarm controller. Power-down controller with no backup, to ensure that system debugging is complete up to all equipment subject to monitoring. Windowing, Chinese menu-style display interface, a comprehensive self-test function of the boot. Embedded installation / wall installation. Another English machines to choose from.

Technical parameters: LCD Screen Size: 128 x 64 points, with the screen display 32 characters of information. Character size: standard font 1927 Controller Capacity: Up to 242 coded address points Main Power: AC220V ± 10% 50Hz/60Hz Emergency Power Supply: DC24V VDR Interface: RS-485 bus Controller monitors power consumption: <20W maximum power consumption of the controller: <60W Color: Light Grey (RAL 100 70 10) Weight: 9.5/9.9 kg Protection class: IP22/IP20
