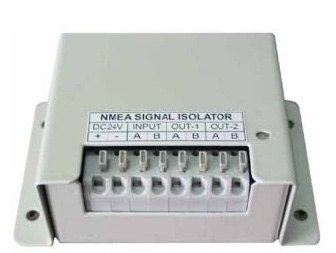

This ZNR-102 NMEA Buffer/Isolator has 1 NMEA signal input port and 2 NMEA output ports.
Input port, Output ports and Input power are fully isolated with each others.

This NMEA Buffer can receive any type of serial data such as RS-422 (NMEA), RS-232, 5V TTL signal for input, and has protection circuits such as high voltage protection.

1. Specifications

 - Input : 1 NMEA-0183 Port (RS-422, RS-232, 5V TTL signal)
 - Output : 2 NMEA-0183 Ports
 - Power : 24V DC (18~32V DC)
 - Protection : Over voltage input, Output short
 - Indicator : Input Power, Data output

 2. Applications

 - NMEA Buffer, Isolator
 - RS-422 Isolator
 - RS-232 to RS-422 Converter, Isolator

3. Option

 -  Power : 12V DC (8~16.5V DC)
