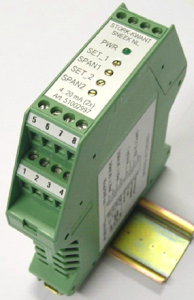

The electronic module 51002997 is designed to convert the position of one double- or two single wiper potentiometers into two 4-20 mA signals.
Two separately adjustable R/I-conversion circuits with span- and offset calibration. -- One common 10 VDC reference voltage to power the potentiometer(s). -- Wiring faults of the potentiometer(s) will result in a 0 mA output signal. -- Wide input range of the potentiometer signal from 10% up to 80%. -- Two internal series resistors of 1000W each to connect 360° potentiometers. -- High side output drivers allow signals with a common ground. -- The output signals are isolated from the power supply. -- Large power supply range (24VDC±30%). -- ‘Power-on’ indication (green LED). -- Optionally an external capacitor (e.g. 1000μF/40V) can be connected to smoothen the power supply voltage. -- The module is mounted on a DIN-rail according to EN50022. -- Type approved by ABS, BV, CCS, DNV, GL, LRS, Class NK, RINA, RMRS.
|
|
|
