System Architecture
The UMS 1000 is divided into four parts:
Software: Human Machine Interface
Reporting
Duty Alarm System
Cabinet and I/O hardware



Software: human machine interface

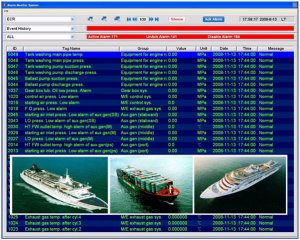

All real-time monitoring data is comfortable present via color graphic mimics. The HMI(human machine interface) has several main functions: display, alarm, event recording, data logging, user Ack, bar graph, real-time chart, system status etc. Software provides friendly and flexible interface for operator.

Reporting
An alarm and event printer is connected with computer for data logging. Software is based on high performance database design and printer can easily choose different report to print.

Duty alarm system
Remote watch units are distributed around the ship such as accommodation area and public spaces where alarms can be viewed and acknowledged. Various units can be distributed around the ship according to your specific requirements.

Monitoring cabinet
he cabinet consists of I/O modules is used for collecting and processing of data from the monitoring process. The intelligent cabinet is fully independent data processor which has redundant communication function for data exchange. Jumho Electric designed HYPO series data acquisition module providing high robust, redundancy features.

Modular and Cost Efficient
The UMS 1000 is a module based system. The hardware is formed by HYPO series modules minimizing the spare parts and reducing cost for your ship.
