SAILOR® mini-C SSAS

Price:

Highlights:

Reliability: Based on the existing Inmarsat-C service, renowned for reliability and for more than a decade part of the Global Maritime Distress and Safety System.
Cost-effectiveness: No monthly subscription fees - one time installation cost only. Airtime costs charged per transmission only.
Ship Security Alert: The SAILOR TT-3000SSA alerts are sent as covert message. This functionality enables direct routing to a selected destination address. The system enables secure remote configuration of destination addresses. System test and end-to-end test-alert functionality.
Flexibility: Total flexibility in routing to anti piracy centres, e-mail addresses, GSM phones, fax, telex, telephone modems and other Inmarsat-C terminals.
Tracking features: The SAILOR TT-3000SSA System offers the opportunity to use additional fleet tracking software, which will enhance Vessel Monitoring Systems (VMS) and fleet tracking possibilities.
Support: Full support by the Thrane & Thrane global distributor and partner network, with more than 10 years experience in delivery, installation and support of Inmarsat C-systems.
Quality: Elevation is -15° ensuring operation even in high sea. Developed to meet your needs at sea, Thrane & Thrane products are your assurance of quality, durability, constant reliability and ease of use.
Long Range Identification and Tracking: The SAILOR TT-3000SSA fully meets and exceedes requirements for LRIT and should also be concidered as the main carrier of LRIT transmissions

Description

The SAILOR TT-3000SSA Ship Security Alert System (SSAS) rests on the renowned and very reliable Inmarsat-C technology from Thrane & Thrane, which for more than a decade has been an integral part of the Global Maritime Distress and Safety System (GMDSS).

The SAILOR TT-3000SSA is a very cost-efficient stand alone solution featuring no subscription fees and fulfils all requirements of SOLAS Resolution XI-2/6 and is approved by all major classification societies.

SOLAS Resolution XI-2/6

The SOLAS Resolution XI-2/6 states that vessels above 500 GT must carry a Ship Security Alert System providing minimum two alert buttons, which can be activated in case of piracy or terrorist attacks. The alarm is a covert signal, which will have no sound and no flashing lights, thus maintaining discretion and avoiding obvious detection by any intruders on board the ship.

The SAILOR TT-3000SSA System

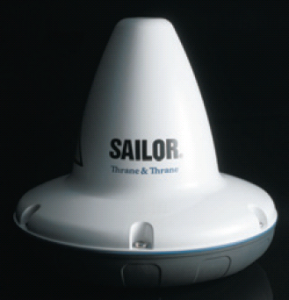

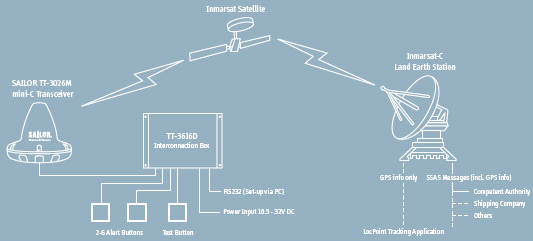

The standard SAILOR TT-3000SSA package consists of a SAILOR TT-3026M mini-C transceiver with 20 meter* transceiver cable, interconnection box, followed by two alert buttons and one test button that can be installed up to 50 meters** away from the interconnection box.

Flexible SSAS Alert Routing and Positioning

The SAILOR TT-3000SSA can deliver SSAS alerts direct to competent authorities and other destinations, as specified by the ISPS code and shipping company. As an additional feature, the SAILOR TT-3000SSA is capable of reporting its GPS positions on regular intervals. The settings are fully end-user controlled from remote via satellite link and thus independent from crew interventions on board.

Certifications and Approvals

The SAILOR TT-3000SSA system is approved by Inmarsat and all major classification societies including:

• Det Norske Veritas (DNV)
• Lloyds Register
• Bureau Veritas (BV)
• Germanischer Lloyd (GL)
• American Bureau of Shipping (ABS)
• US Coast Guard
• Chinese Classification Society (CCS)
• Russian DMT and RMRS

In addition, the SAILOR TT-3000SSA has acceptance statements from relevant flag states throughout the World.

World-class Service

The Thrane & Thrane On Board Service Center network stretches around the globe. Carefully selected and trained distributors, dealers and service centers are available for instant support and service in harbors all over the world.
