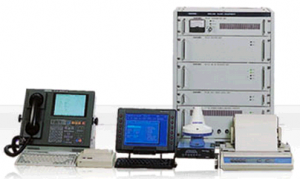

SAMYUNG NBTP SN-100 WITH SRG-250/400 RADIO CONSOLE

Description

General information
Frequency range
- TX : 1.6MHz ~ 27.5MHz(100Hz STEP)
- RX : 1.6MHz ~ 27.9MHz(10Hz STEP)
TX/RX channel : Full ITU channels
Memory channel : 2,000 channels
Frequency tolerance : within 10Hz(within 0.3PPM)
Modes of emission : J3E, H3E, F1B, J2B, A1A
Communication mode : Simplex and duplex
Operating temp. : -15℃~ +55℃
Power supply : AC 110/220V 50/60Hz & DC24V

DSC Rx
Frequency : 2187.5, 4.27.5, 6312, 8414.5, 12577, 16804.5KHz
Modes of emission : F1B, J2B
Frequency stability : within 10Hz
Speed of modulation : 100BAND

Printer
Type of printing : Heat sensitive serial dot type
Character composition : 9 7 DOT WIDE
Number of printing character : 40(standard size), 80(small size)
Width of printing : 89.6mm
Width of paper : 112mm

Transmitter
Output power : 250W(SRG-250)/400W(SRG-400)
Modulation mode : Low power level modulation type
Occupation frequency band range
: within J3E, H3E 3KHz within F1B, J2B, A1A 0.5KHz
2 Tone alarm : 1300Hz, 2100Hz

Receiver
Receiving type : Synthesized double super heterodyne type
Modes of emission : J3E, H3E, R3E, FQB, J2B, F3C, A1A
Image disturbance rate : more than 70dB
Input impedance : 50

NBDP
Type of modulation : Phase sequence AFSK
Intermediate frequency : 1700Hz
Speed of modulation : 100BAND(ARQ, FEC MODE)
Frequency tolerance : within 0.5Hz
Mark : 7 units CORD 4B/3Y MARK signal


MF/HF Radio equipment ×1SET MF/HF Control Part ×1SET Keyboard ×1SET Antenna matcher ×1SET Printer ×1SET Connect cable & spare part ×1lot Instruction manual & Installation drawing ×set each
