2 wire pressure transmitter for industrial Application Integra 575 Series

Description

The Integra Series 575 is a two wire, 4 to 20mA pressure transmitter offering superb chemical and corrosion resistance. Gauge or absolute pressure is detected using a four active arm strain gauge bridge sensor, fused to a high purity ceramic diaphragm. Available in 3 classes of accuracy and thermal compensation as specified below, with standard ranges from 100 mbar to 600 bar. The unit can also be factory scaled to customer specific requirements including compound ranges.

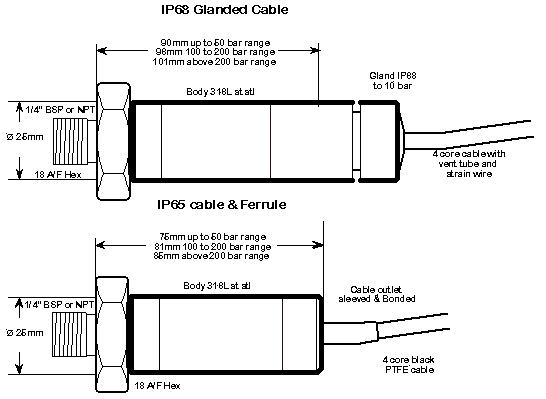

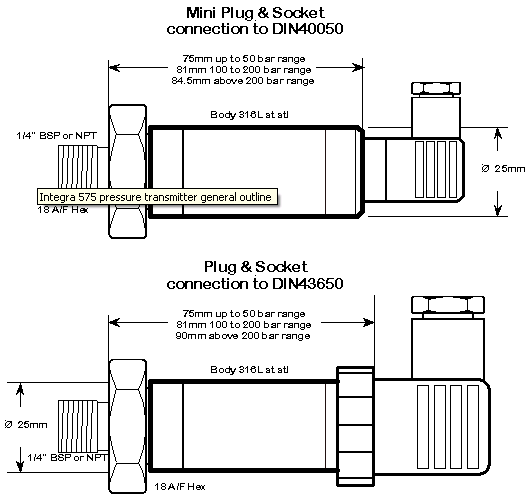

Specifications
General Details
Wetted Materials:	316L Stainless steel, Alumina ceramic & Viton
Standard Ranges:	0.1, 0.4, 1, 2, 3, 5, 10, 20, 50, 100, 200, 400 & 600 bar
Safe over-range Pressure:	1.5 x rated range
Burst Pressure:	3 x rated range minimum
Class A High specification
Output—span:	16mA +/- 0.5% of span
Output—zero:	4mA +/- 0.5% span
Non linearity, hysteresis & repeatability:	0.1% of span (best fit straight line
Compensated Temp range:	-20 to +125 deg C
Operating Temp Range:	-20 to +125 deg C
Thermal zero shift:	0-100 deg C,+/- 0.01% span per deg C <0 deg C & >100 deg C, +/-0.015% span per deg C
Thermal Span shift:	+/- 0.015% reading per deg C typical
Long Term stability:	0.1% per 12 month typical
Supply:	10 to 32V DC
Loop resistance:	1.1k Wmax @ 32V dc supply

Class B Industrial specification
Output—span:	16mA +/- 1% of span
Output—zero:	4mA +/- 1% span
Non linearity, hysteresis & repeatability:	0.15% of span (best fit straight line
Compensated Temp range:	-0 to +100 deg C
Operating Temp Range:	-20 to +125 deg C
Thermal zero shift:	+/-0.015% span per deg C
Thermal Span shift:	+/- 0.015% reading per deg C typical
Long Term stability:	0.1% per 12 month typical
Supply:	10 to 32V DC
Loop resistance:	1.1k Wmax @ 32V dc supply

Class C General Purpose
Output—span:	16mA +/- 1% of span
Output—zero:	4mA +/- 1% span
Non linearity, hysteresis & repeatability:	0.25% of span (best fit straight line
Compensated Temp range:	-0 to +80 deg C
Operating Temp Range:	-20 to +125 deg C
Thermal zero shift:	+/-0.04% span per deg C
Thermal Span shift:	+/- 0.015% reading per deg C typical
Long Term stability:	0.1% per 12 month typical
Supply:	10 to 32V DC
Loop resistance:	1.1k Wmax @ 32V dc supply
