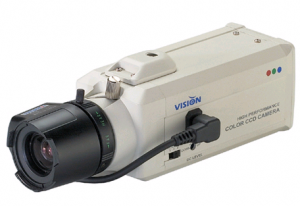

C/CS Box camera
Printer Friendly Tell a Friend
C/CS Box camera
Price:


Highlights:
- Day & Night (Automatic conversion from Color to B/W at 5 Lux) - Super Low Lux Sensitivity of 0.03Lux/F1.2 (Super HAD)
- Extremely accurate color reproduction with 10 bit data process
0.001Lux/F1.2 (Ex-view HAD)
- Higher resolution of 500TVL(Day) / 560TVL(Night) - Built-in DIP SW (BLC On/Off, AGC Nor/Max, AWB/Push Lock,
- Surge voltage input protection built-in
Gamma 0.45/1.0) Function
- Reverse polarity power input protection built-in - Power option : 12VDC, 12VDC/24VAC, 230VAC

 Description

This model is a high performance C/CS camera with a new state-of-the-art implementation of DSP technologies optimized for the demands of 24/7 professional applications. The unit incorporates Sony Super HAD/Ex-view HAD chip set and an automatic Day/Night image conversion from Color to B/W at 5Lux darkness maintains the picture quality at daytime a true Color and a noiseless clear B/W image at nighttime enhancing the sensitivity of up to 0.001Lux/F1.2 and the resolution up to 560TVL. Built-in user's friendly DIP SW functions offers White Balance-Push lock/ Line Lock/ ATW etc. They enhance the camera's image reproduction capability, suitable for all environments and in variable light circumstances. The model has an unique C/CS mounting converter with which users can adjust the flange back fine focus for all different sources of C/CS mount lenses.

Image sensor 1/3" Sony Super HAD High-Res 1/3" Sony Ex-view HAD High-Res
Effective Pixels NTSC : 768(H) X 494(V)      PAL : 752(H) X 582(V)
H.Resolution 500 TV Lines (Day) / 560 TV Lines (Night)
Min. Illumination 0.03Lux at F1.2 0.001Lux at F1.2
Synchronizing system Internal (-12)    /    Internal / Line Lock (-24L)    /    Line Lock (230L)
Scanning system NTSC 525 Lines    PAL 625 Lines    2:1 Interlaced
Video output 1.0Vp-p Composite. 75 Ohms
S/N Ratio More than 50dB (AGC Off)
Back Light Compensation ON/OFF by Dip Switch
Shutter Speed NTSC : 1/60~1/100,000 sec      PAL : 1/50~100,000 sec
Gamma correction Standard r=0.45    Switchable r=1.0 by Dip Switch
White balance 2100˚K~9100˚K Automatic or Manually adjustable by Dip S/W with Up/Down Push BTN
Gain Control 4dB~30dB Auto
Smear Effect 0.005%
MTBF 80,000 hours
Power source DC12V (-12)    /    DC12V-24V Dynamic (-24L)    /    AC230V (-230L)
Operating current 130mA (-12)    /    150mA, 110mA (-24L)    /    30mA (-230L)
Lens mount C-Mount (17.5mm Flange back) ∼ CS-Mount (12.5mm Flange back) & Fine focus ± 1.0mm
Iris Control Video Iris / ESC / DC Iris
Operating Temperature 14˚F ~ 122˚F (-10˚C ~ +50˚C)
Humidity Within 90% RH
Measurement (mm) 50(W) x 50(V) x 114.9(L)
Weight (Approx.g) 310 (-12, -24L)    /    410 (-230L)
Dip S/W
Functions
ESC/ALC O O
BLC On/Off O O
Flickerless On/Off O O
Internal / Line Lock X (-12)    /    O (-24L, -230L)
AWB/MWB X (-12)    /    O (-24L, -230L)
AGC Nor/Max O O
Gamma 0.45/1.0 O O
Optional
Features
True Day/Night O O
Dual Filter mechanism O O
IR Sensitivity O O
External Audio O O
Rear
Panel
Video Out (BNC) O O
Power Indicator (Red LED) O O
Power Input terminal O O
Line phase push BTN X (-12)    /    O (-24L, -230L)
W/B adjust push BTN O O
Dip S/W O O
Side
panel
Auto Iris jack O O
Iris Mode Slide S/W O O
DC Iris Level Volume O O
