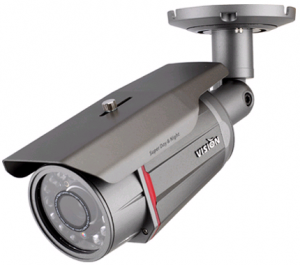

This model is a camera specially designed for the professional Day/Night surveillance. At daytime, the camera features a 520TVL Color image and at nighttime, the image is converted into real B/W mode (Color signal removed) resulting in the resolution and sensitivity greatly enhanced. The camera incorporates an Intelligent CDS sensor and mechanical day/night dual filter system so that the filter is accurately switched on and off with the image changed from Color to B/W or B/W to Color mode at 5 lux darkness. IR effective distance reaches 50 merters. Specially designed power circuit enables the camera to be operated from DC19V to DC35V maximizing the reliability of the unit from power fluctuations. This wide tolerance accepts most of unstable power supplies without failure before or after installation. It accepts either DC24V or AC24V power supply unit with no polarity input.
Image Sensor
1/3" Super Sensitive CCD
Effective Pixels
NTSC : 768(H) X 494(V) PAL : 752(H) X 582(V)
H.Resolution
NTSC : 520 TV Lines (at Day) / 560 TV Lines (at Night) PAL : 510 TV Lines (at Day) / 550 TV Lines (at Night)
Synchronizing system
Internal or Linelock
Scanning system
NTSC 525 Lines PAL 625 Lines 2:1 Interlaced
Video output
1.0Vp-p Composite. 75 Ohms
S/N ratio
More than 50dB (AGC Off)
Min. Illumination
0.01 Lux at F1.6 (IR Off)
Back Light Compensation
AUTO
Shutter Speed
NTSC : 1/60~1/100,000 sec PAL : 1/50~100,000 sec
Gamma correction
Standard r=0.45
White Balance
2100˚K ~ 9100˚K Auto
Gain Control
Standard : -6dB ~ 42dB Auto
Smear Effect
0.005%
Power source
DC24V or Dual (DC24V / AC24V)
Operating current
120mA at 24VDC(IR "off" Day) 550mA at 24VDC(IR "on" Night)
