KWANT CONTROLS - PROPULSION CONTROL UNIT TYPE BUK-H
Price:


Highlights:

The Kwant Controls control units type BUK-H are small sized ergonomically designed lever units designed for propulsion control. They come in single or double lever execution with cross bars only, all types executed with a dual 5KOhm potentiometer per lever. The basic execution has zero built-in depth which makes it especially suitable for armrest mounting. Motorized versions (stepper motor) for digital electric shaft application are available. The BUK-H has been type-approved by the leading classification bureaus ABS, BV, CCS, DNV, GL, LRS, NKK , RINA and RMRS.


 Description

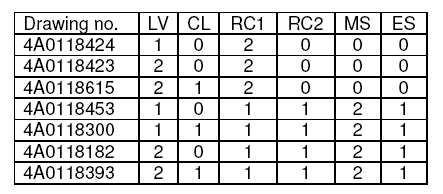

The following versions can be supplied:

LV = # of LeVers.

CL = CoLour, 0= blank, 1 = black.

RC1 = Remote Control potentiometer, 5KOhm, per lever.

RC2 = Remote Control potentiometer, 2KOhm, per lever (optional).

MS = Micro Switch contacts, per lever (optional).

ES = Electric Shaft servomotor, per lever.

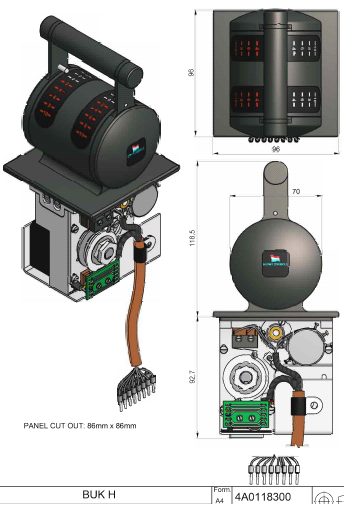

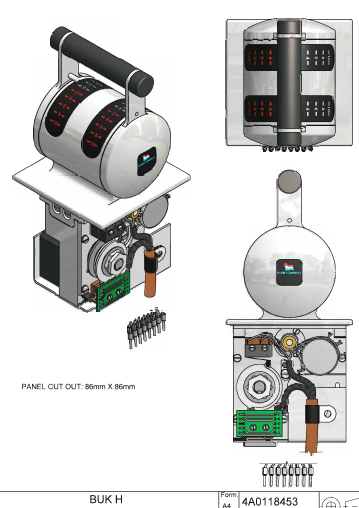

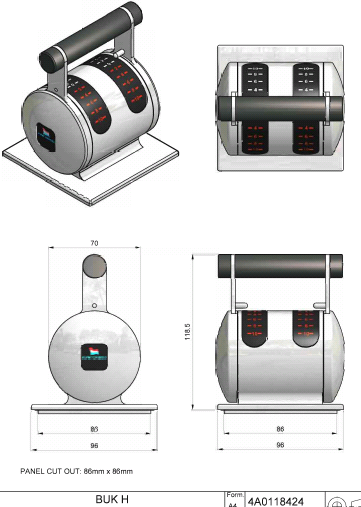

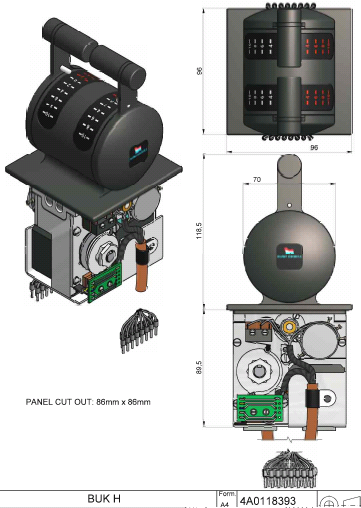

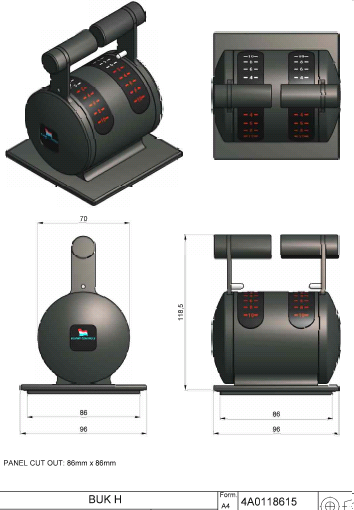

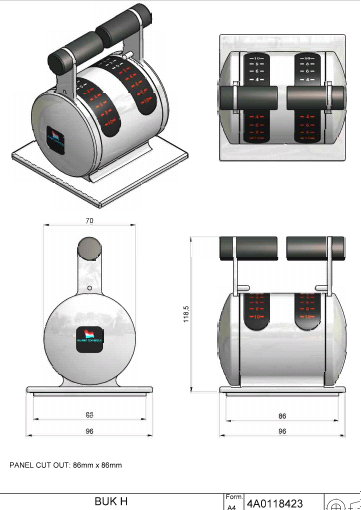

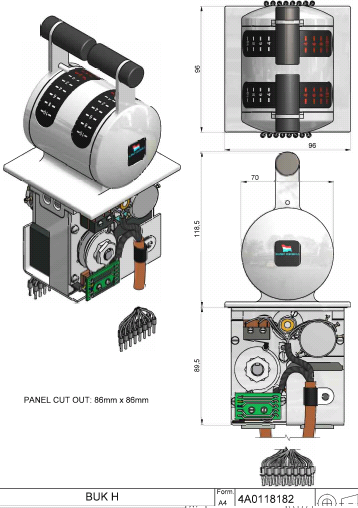

The above mentioned drawings are shown on the next pages.
