KWANT CONTROLS - PROPULSION CONTROL UNIT TYPE BUK-C

KWANT CONTROLS - PROPULSION CONTROL UNIT TYPE BUK-C

Price:

Highlights:

The Kwant Controls control units type BUK-C are medium sized console mounted lever units designed for propulsion control. They come in single or double lever execution with either a knob or cross bars. The BUK-C has been type-approved by the leading classification bureaus ABS, BV, CCS, DNV, GL, LRS, NKK , RINA and RMRS.

A typical unit is specified as follows:

1 - Control Unit, type BUK-C, suitable for mounting in a console. The instrument made of seawater proof aluminum alloy and having one peripheral dial. The dial is protected by means of an unbreakable, transparent and UVproof protecting cover. All decorative parts are black anodized or black painted.

Description

The instrument equipped with:

a). 1- control lever with an adjustable friction device and a palpable stop in zero.

b). 1- transmitter-potentiometer, 2 k.Ohm with center tap.

c). LED dial illumination (24 VDC), dimmable;

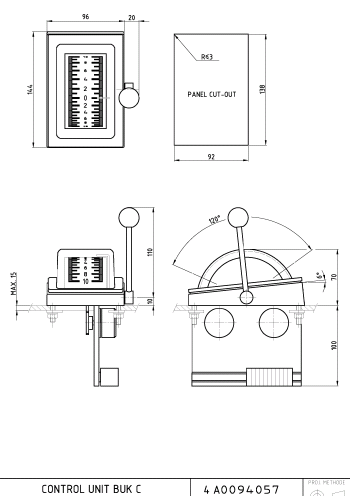

Dimensions according to sketch: 4A0094057

Available options:

· Mechanically lockable cross-levers, see sample sketch 4A0104482;

· BUK-C Extended, with integrated telegraph system “pointer” type, electric shaft drive

assembly, mA transmitter, micro-switches, illuminated pushbutton and dimmer, see

sample sketch 4A0107731;

· BUK-C Special, for bow- or stern thruster control, see sample sketch 4A0108775;

· For single lever types, telegraph or feedback (pitch/rpm) indication is possible, see

sample sketch 4A0107731;

· Electric shaft system for synchronizing with other control units;

· Spring return levers;

· Special dials on customer request;

· Integrated signal transmitters e.g. 4-20mA;

· Microswitch contacts e.g. for clutch control.
