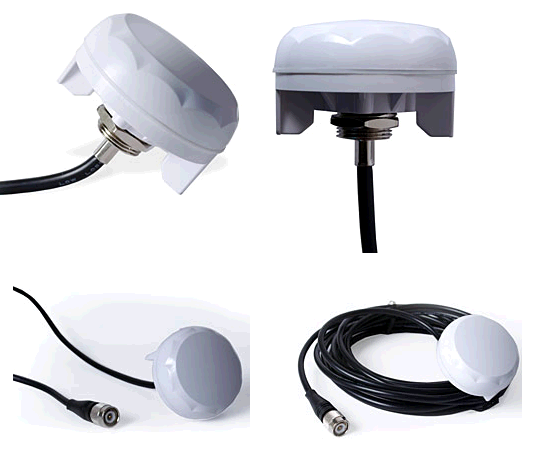

The antenna system RV-16 is the integration of the high performance GPS patch antenna and a low noise amplifier into state-of-the-art low a very low profile/ extremely compact/fully waterproof antenna signal enclosure. When connected to a GPS receiver with +5V DC antenna power it provide excellent signal amplification and out-band-rejection for that receiver.
Features
GPS antenna with double threaded bolts and through holes for cable routing with course & fine treaded pitch locking for wing-nut fastener and lock-nut to prevent vibrations and un-authorize removal.
Low noise figure / Fully weather proof
Ultra-high Sensitivity / Compact construction
Excellent temperature stability
| Physical Constructions: |
| Constructions: |
Polycarbonate radome,detachable cable/connector for easy mount, rubber-O-ring between top radome and screw base for waterproof |
| Dimensions: |
60mm in diameter x 38mm in height. |
| Weight: |
125grams (w/o cable & connector). |
| Color: |
Standard in ivory white, other colours available upon request. |
Mounting:
|
Bulkhead mount with 0.8 inch threaded wing nut (standard acessory). |
| Cable & Connector: |
| RF cable: |
5 meter RG174/U (standard) other length (optional) |
| Pulling strength: |
6 Kg @ 5sec. molded plastic on connector end for strain relief. |
| Connector available: |
BNC,TNC,GT5,MCX(OSX),SMA,SMB or SMC. Straight or right angle. |
| Optional: |
Universal Connector Adapter (FME to TNC/BNC/SMA/SMB/MCX) |
| Antenna Element: |
| Center Frequency: |
1575.42 MHz +/-1.023 MHz |
| Polarization: |
R.H.C.P. (Right Handed Circular Polarization). |
| Absolute Gain @ Zenith: |
+5 dBi typical. |
| Gain @ 10° Elevation: |
-1 dBi typical. |
| Axial Ratio: |
3 dB max. |
| Output VSWR: |
1.5:1 max. |
| Output Impedance: |
50 ohm |
| Low Noise Amplifier: |
| Center Frequency: |
1575.42 MHz |
| Power Gain: |
31 dB typical |
| Bandwidth: |
2 MHz min. |
| Noise Figure: |
1.5 max. |
| Outer Band Attenuation: |
20 dB min. @ Fo +/-50 MHz. |
| Supply Voltages: |
4.5~5.5V DC. |
| Current Consumption: |
28mA +/- 3mA. |
| VSWR: |
2.0max. |
| Output Impedance: |
50 ohm |
| Overall Performance: (antenna element, LNA & coax cable) |
| Center Frequency: |
1575.42 MHz. |
| Gain: |
27 dB typical |
| Noise Figure: |
2.0 dB max. |
| Axial Ratio: |
3 dB max. |
| Bandwidth: |
2MHz min. |
| VSWR: |
2.0 max. |
| Output Impedance: |
50 ohm |
| Enviromental Condition: |
| Operating Temperature: |
-40°C~ +85°C. |
| Storage Temperature: |
-40°C~ +85°C. |
| Relative Humidity: |
95% non-condensing. |
| Water Resistance: |
100% waterproof. | |
|
|
|
|
